Product code: 1000001264
Manufacturer's article: MS 1027

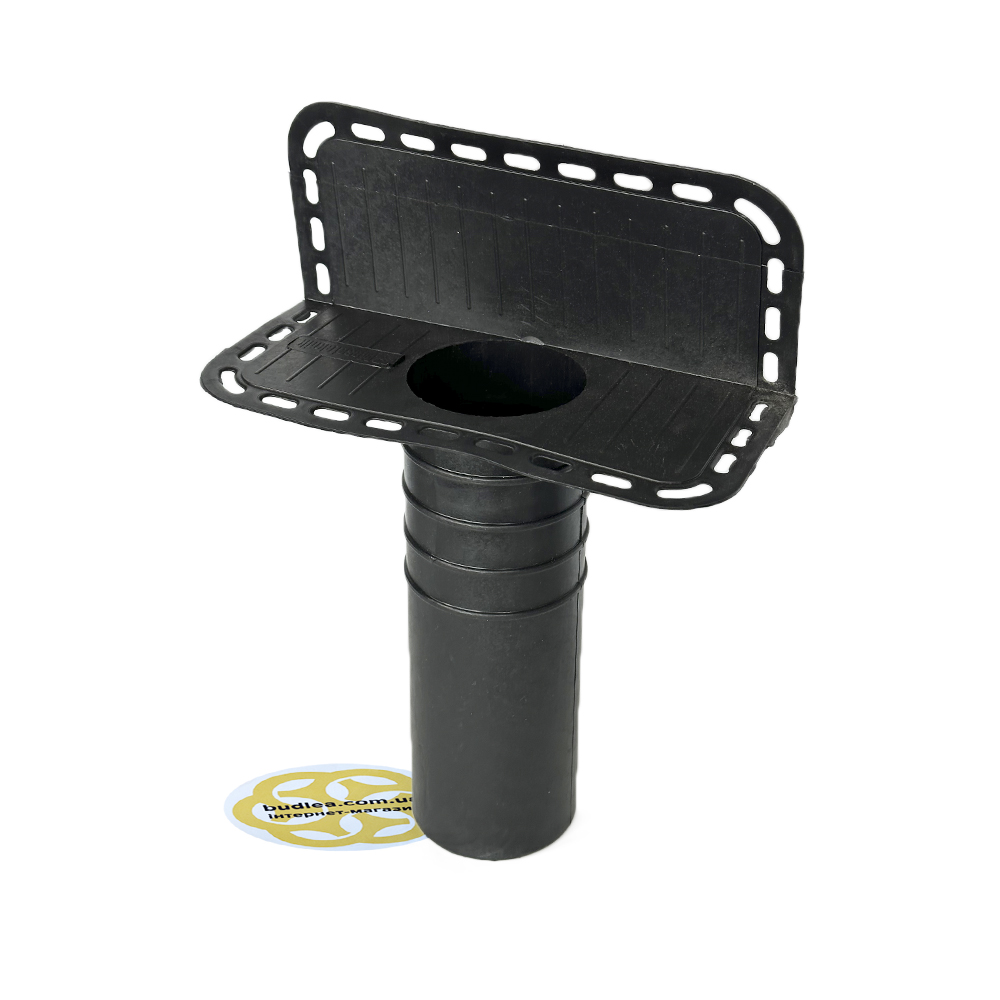

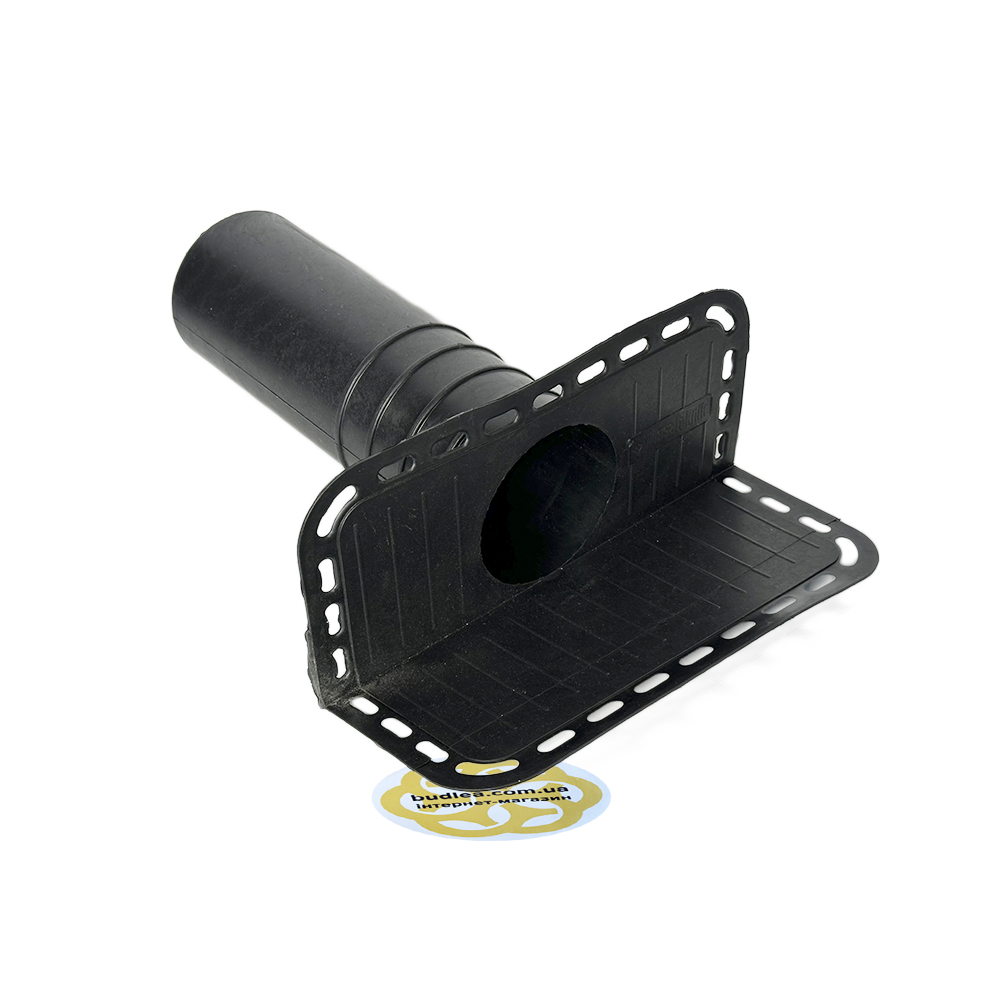

Parapet drainage funnel DN100, black Mesa
Parapet PVC funnel with flange for connection to a horizontal drain in the roof.
- Flange width: 13 cm
- Flange length: 32cm
- Funnel height: 31 cm

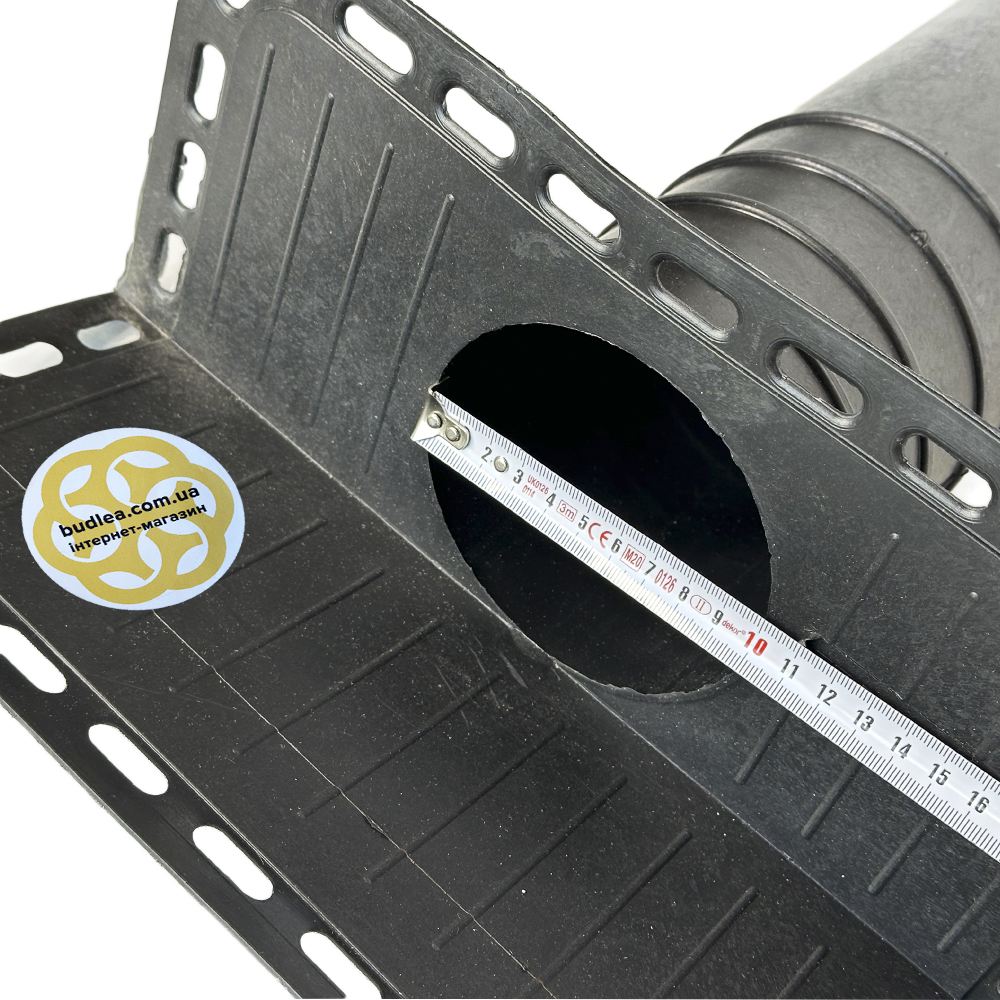

- Connection diameter: 100 mm
- Black color
Funnels are 100% compatible with factory-made PVC membranes.
Parapet drainage funnels are used to connect to a horizontal drain in the roof itself. The convenient shape allows for quick and easy installation in drainpipes.
PVC funnels provide excellent resistance to degradation caused by sun, ozone and other weather factors. The elasticity of the material provides excellent flexibility even at low temperatures, which ensures that mechanical and physical properties are maintained over time.
Another advantage of PVC funnel is its resistance to low temperatures, cold flexibility - 40ºС.
- product type: parapet funnel
- purpose: roof funnel
- features: horizontal
- material: PVC
- diameter: 100 mm
- flange length: 320 mm
- height: 310 mm
- black color
- manufacturer: Türkiye

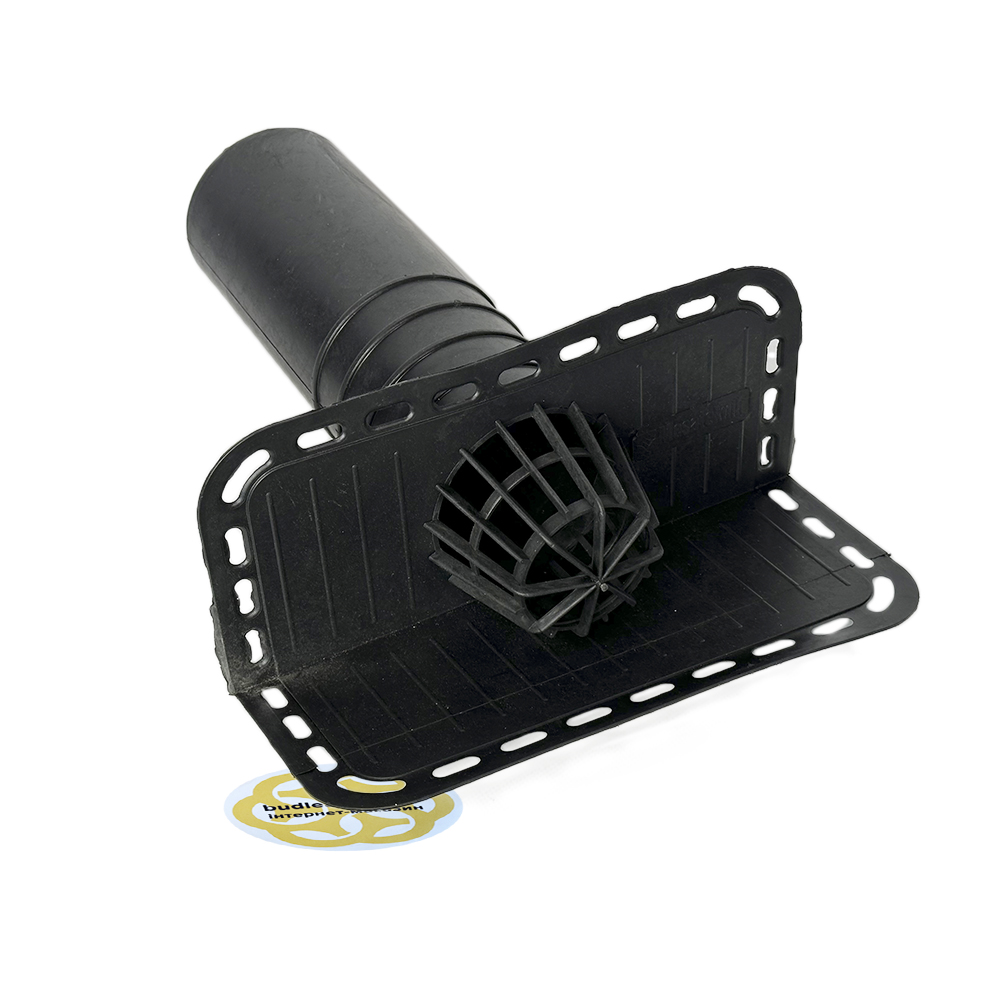

*leaf catcher is not included!
