Product code: 100025374
Manufacturer's article: ДИ 02317000

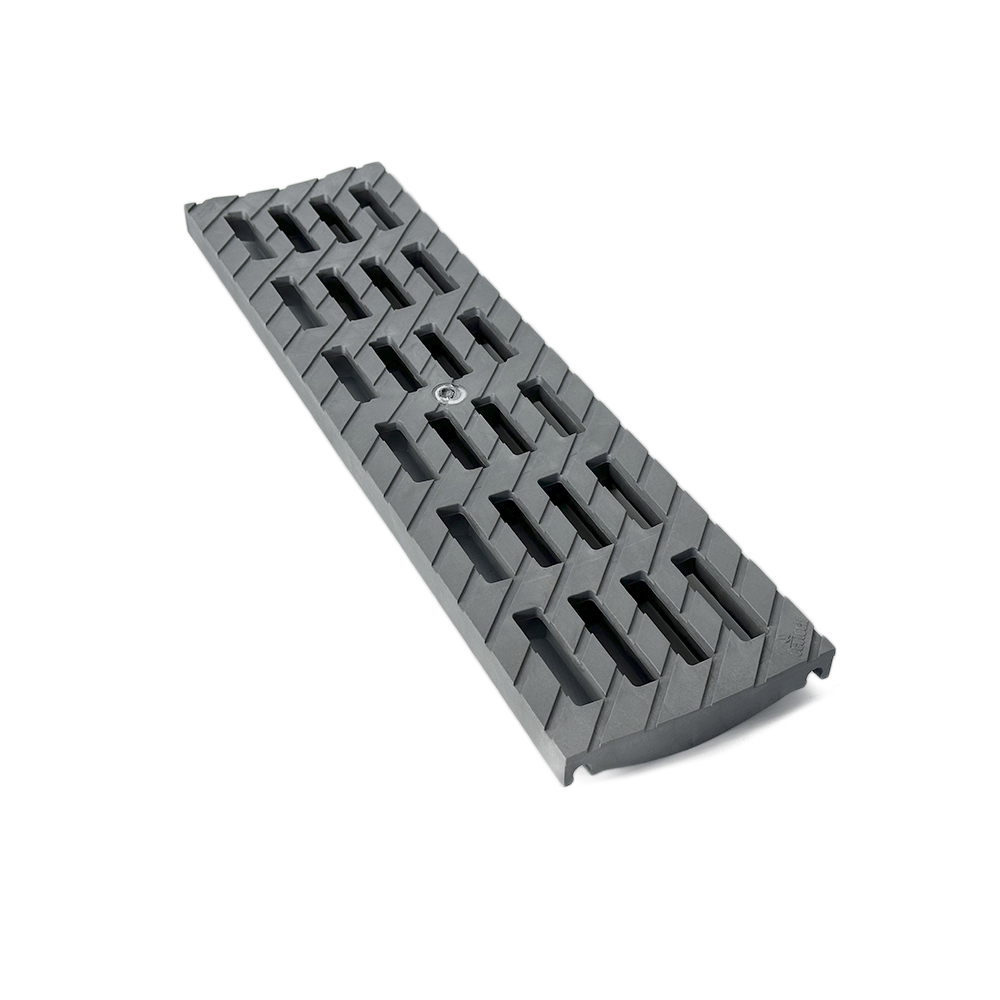

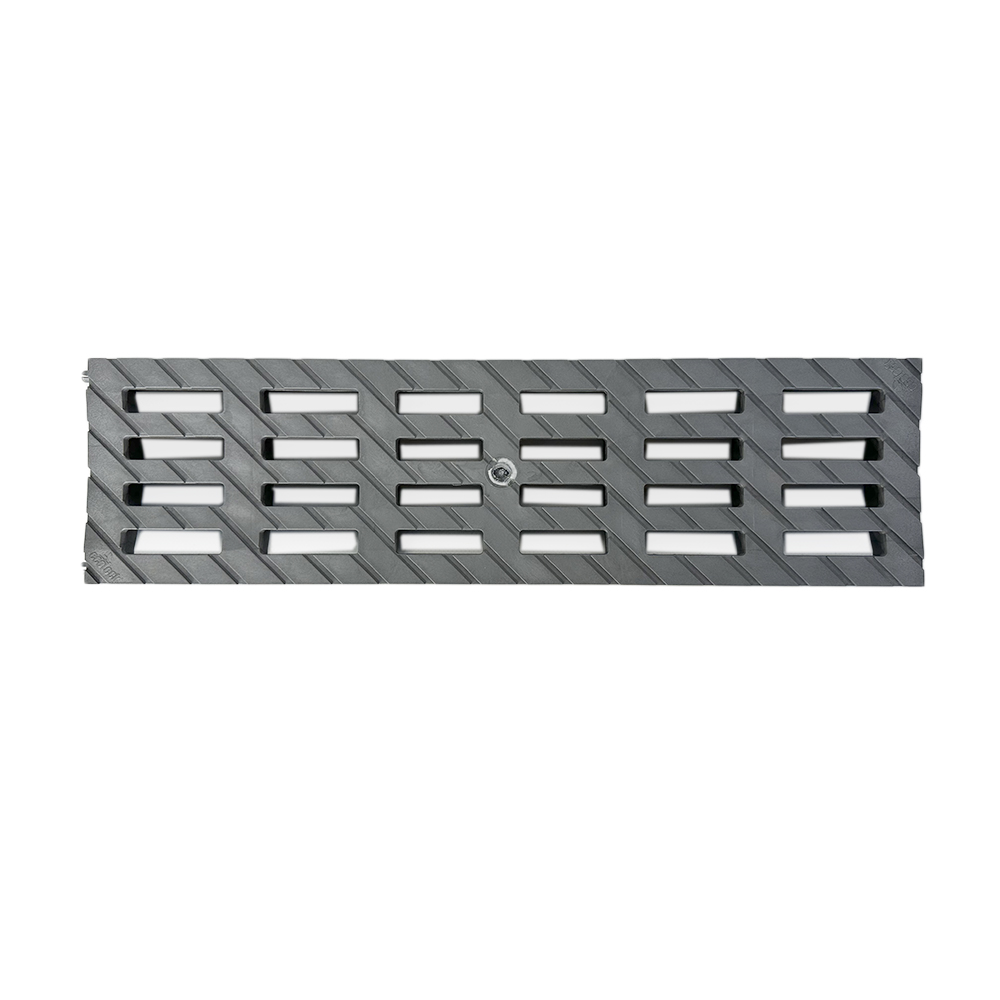

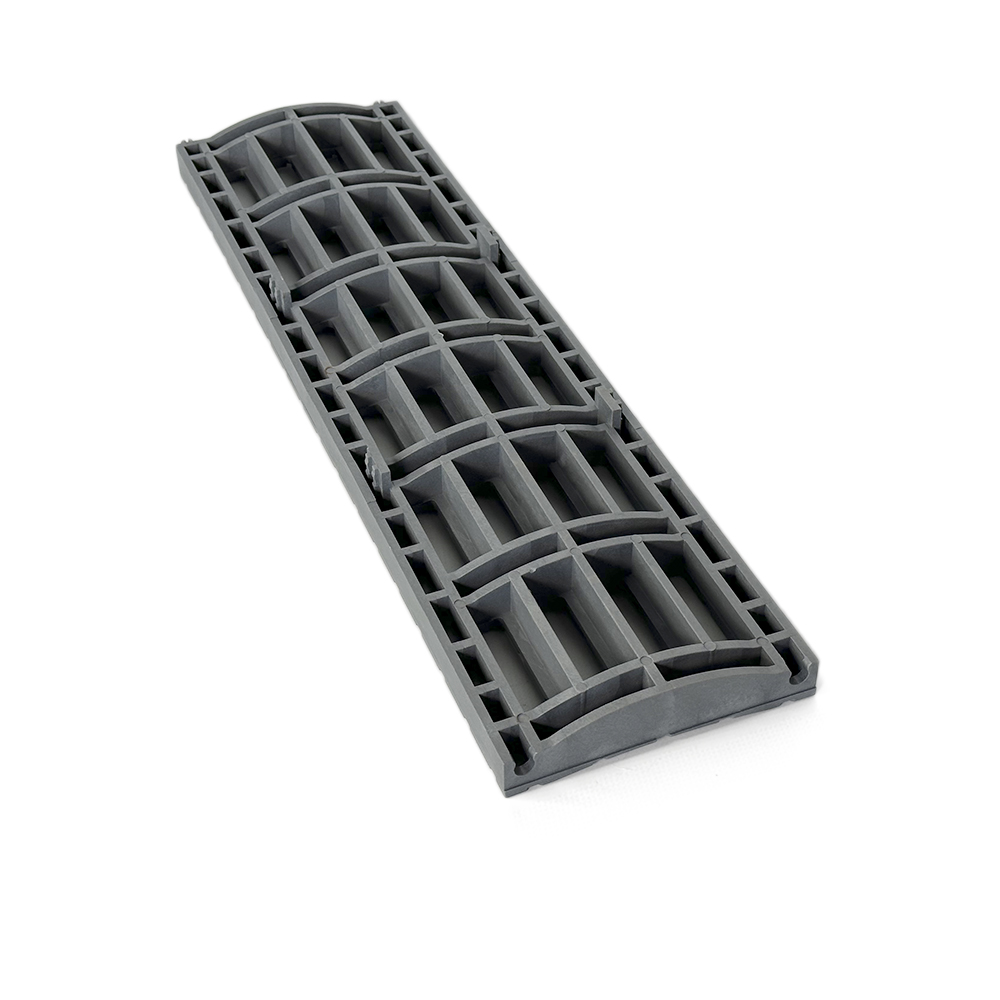

Reinforced grid for drainage tray MEDIUM 100, composite plastic, load B125 Sanpreis
The reinforced grating MEDIUM 100 is made of composite plastic and has a load class of B125, up to 12.5 t/m². The main function of a plastic reinforced composite grate for street drainage is to ensure the free passage of wastewater through the channel. The grille is designed to effectively trap debris, leaves, twigs and other large particles, preventing them from entering the channel and protecting it from clogging. This allows you to maintain optimal channel permeability and prevent possible congestion and flooding.
- material: composite plastic
- length: 50 cm
- width: 13.6 cm
- thickness: 2 cm
- load class: B125 up to 12.5 t/sq.m
- color: black/metallic

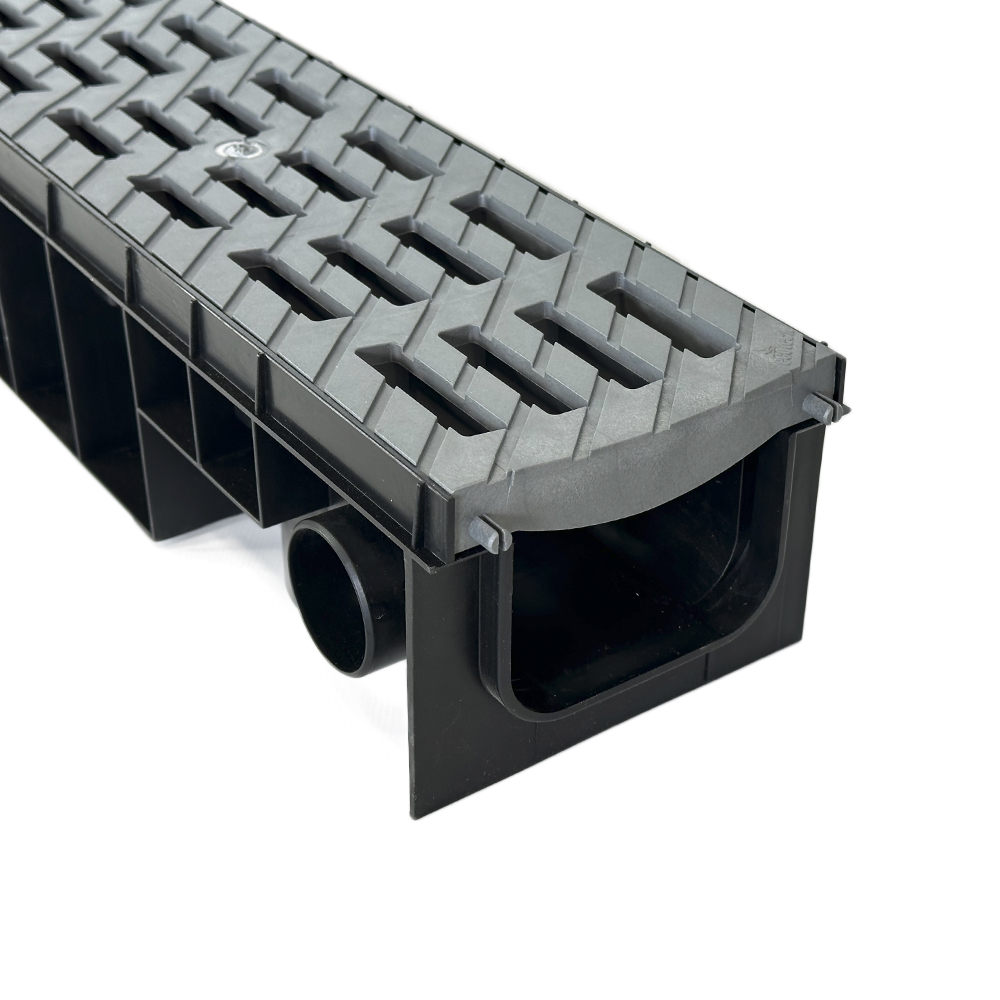

The plastic grating for the drainage channel is intended for installation in the channel. The main function of the grate is to pass wastewater. The grate also protects the channel from large debris. if necessary, it can be removed to clean the drainage system. The plastic grating has a load class of B125, up to 12.5 t/m², that is, it can be installed in the local area in the private sector, as well as for the construction of retail space, playgrounds or parking lots.
- Product type: drainage tray grid
- Purpose: street drainage
- Material: composite plastic
- Length: 500 mm
- Width: 136 mm
- Hydraulic section (internal width): DN 100
- Height: 20 mm
- Load class: B25 up to 12.5 t/m²
- color: black/metallic
How to make drainage on a site if there is nowhere to drain the water?
If it is not possible to drain water to other areas on the site, you can use special drainage wells or reservoirs for temporary or permanent accumulation of water.
Is it possible to cover the drainage with soil?
Drainage systems are usually not covered with soil, as this may impair their functionality. Instead, it is recommended to use gravel or crushed stone to fill ditches or holes to ensure good drainage and prevent clogging of the system. Taking care of drainage in your summer cottage is an important aspect that will help keep it in good condition and avoid negative consequences from humidity and stagnant water. Properly planned and installed drainage will ensure comfort and safety on your site in any weather.
